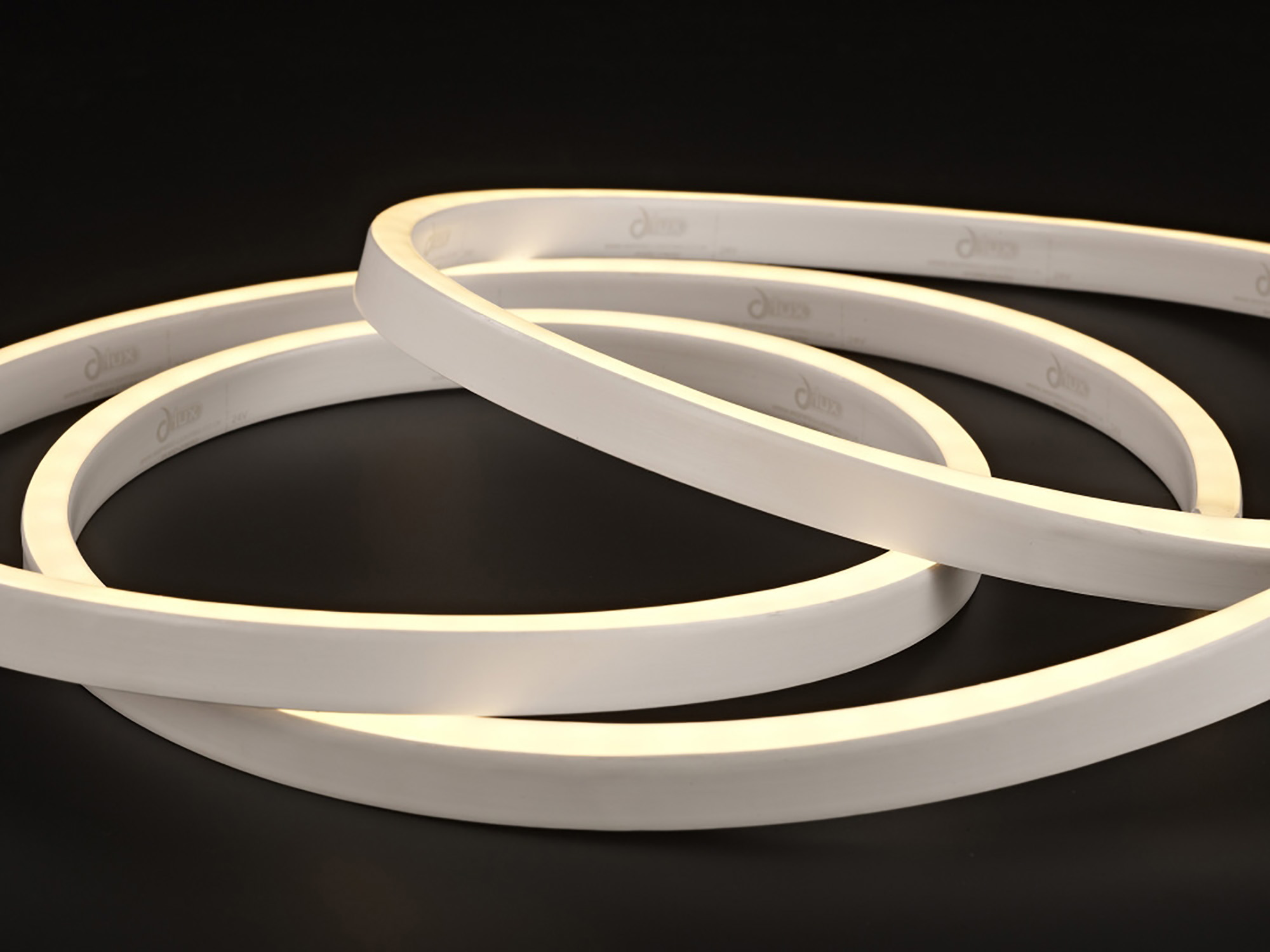

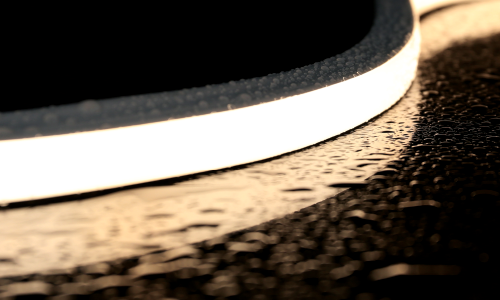

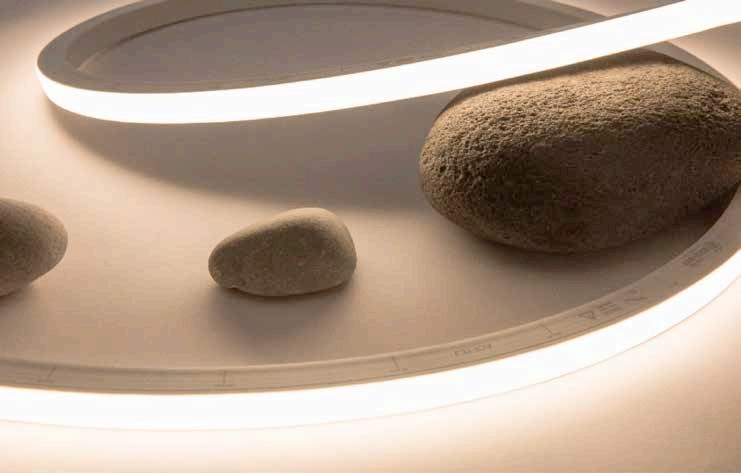

15*15mm Vertical view silicon LED NEON FLEX Strip

LED NEON FLEX, LED STRIP LIGHT, FLEXIBLE NEON STRIP, SILICON, IP67, 6*12MM 8*15MM

15*15mm Vertical view silicon LED NEON FLEX Strip

Select the number of specifications

Please check the product information you want!

Product Detail

- Single Colour / Dynamic White Flexible LED







Typical Applications





Architectural & Commercial




Landscapes & Exterior Lighting




Facades




Furniture




Features





High quality uniform light source




Injection moulded




Horizontal bend




120mm bend radius




IP67 as standard




Powered from one end, both




ends or middle





Environmentally friendly & energy











UV and Flame resistant




Easy to install


Technical Information





Product Specification
Single Colour / Dynamic White



Bending
Horizontal





2700K - 3000K - 4000K - 5000K - 6000K



Colours







White - Red - Green - Blue - Amber



LED Chip
120pcs 2835 SMD per meter



Binning
3 Step MacAdam



Voltage
12/24V DC



Watts/m
7.2W Red/Amber - 12W White/Green/Blue



Typical Lumens (lm/m)
White=320 - R=110 - G=220 - B=35 - A=110



Min Cut Length
Red/Amber=125mm - White/Green/Blue=83.3



Beam Angle
120°



Dimming
On/off - DALI - 0-10V - DMX



IP Rating
IP67*



IK Rating
IK08



Operating Ambient Temperature
-20°C ~ 55°C



Material
silicon



Lifetime @ lm80
50,000 hrs



Max Length - 1 Lead
Red/Amber=15m - White/Green/Blue=10m



Connection
5m tail to bare ends









Product Introduction
Neon Led Strip Light
