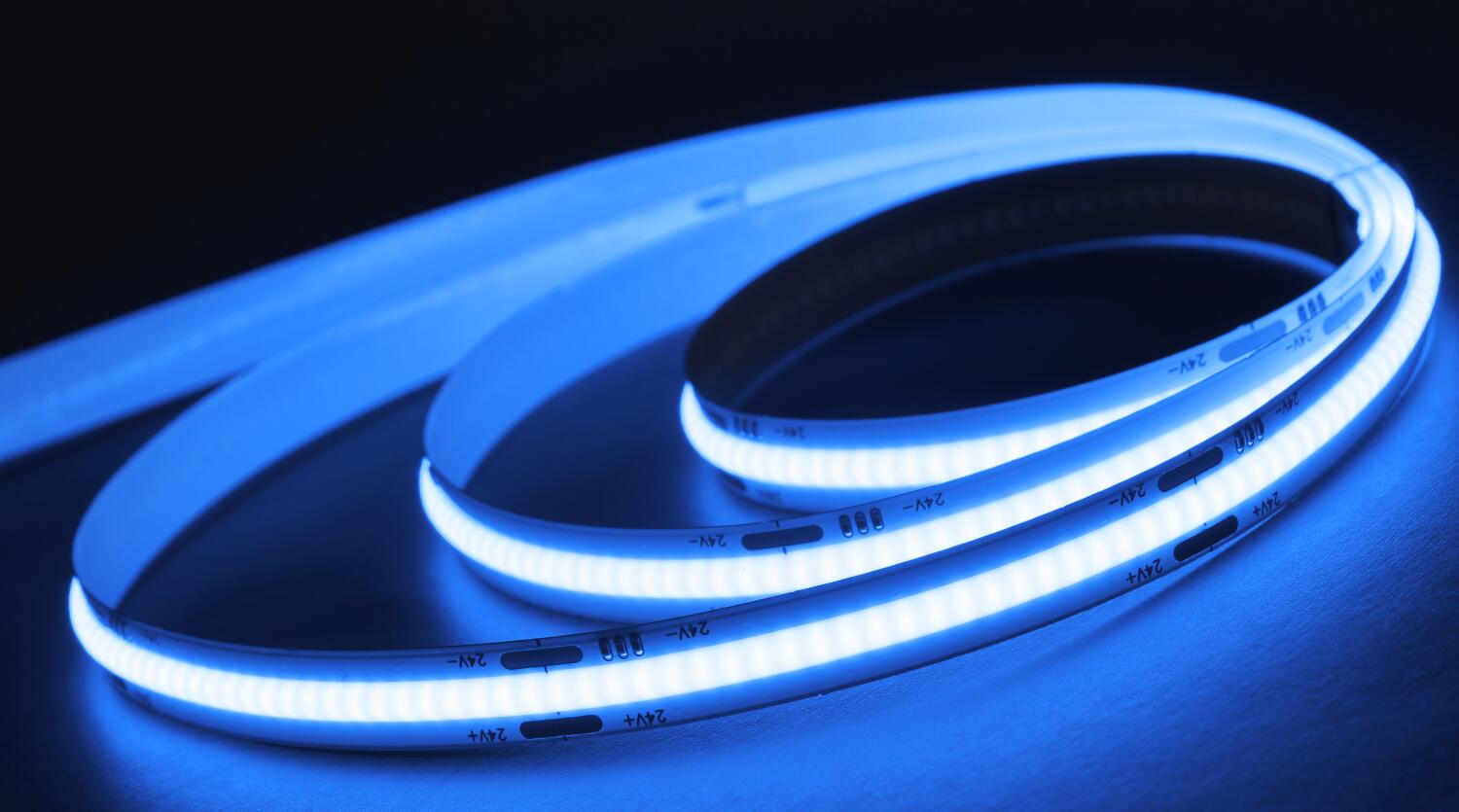

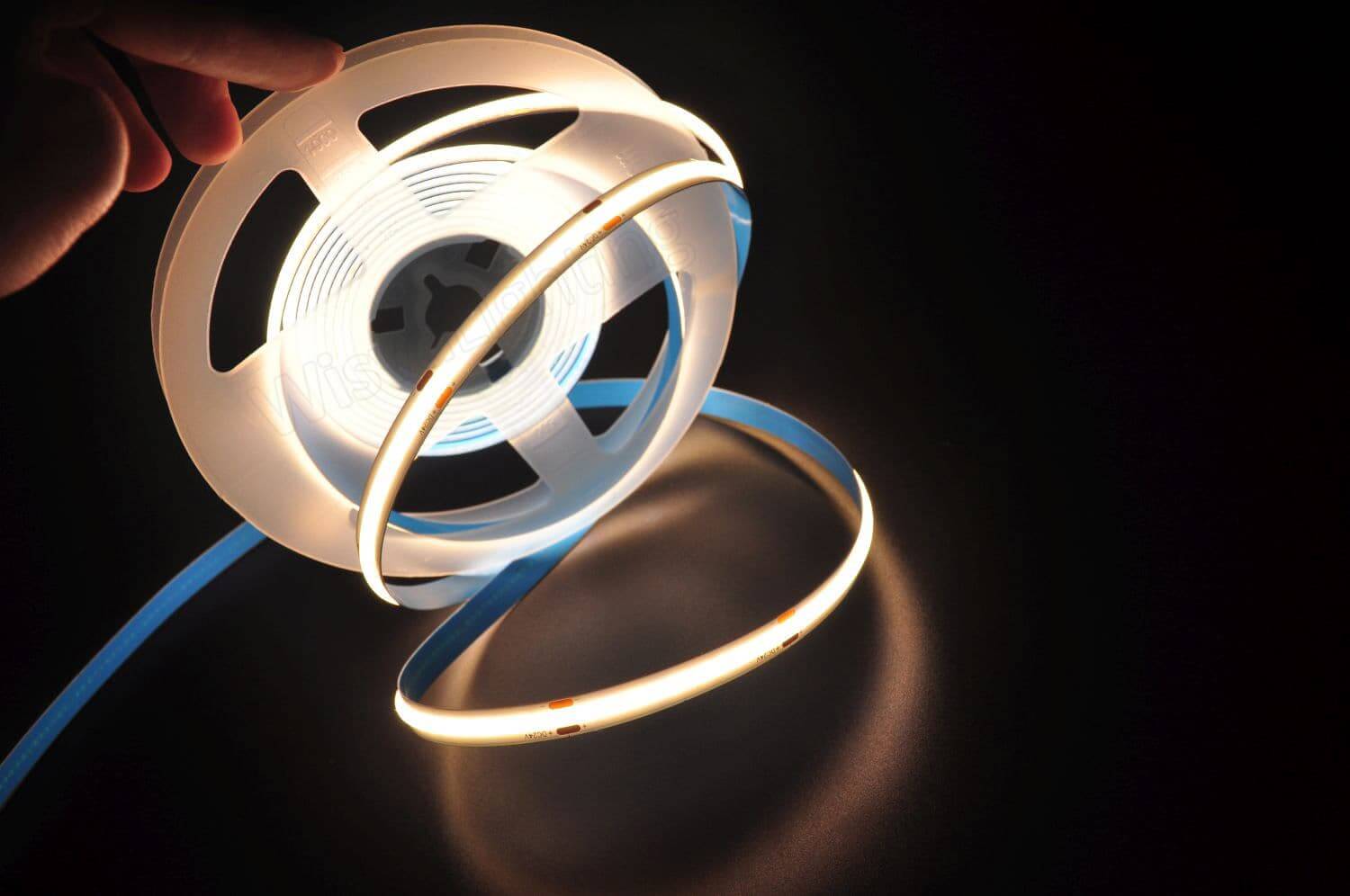

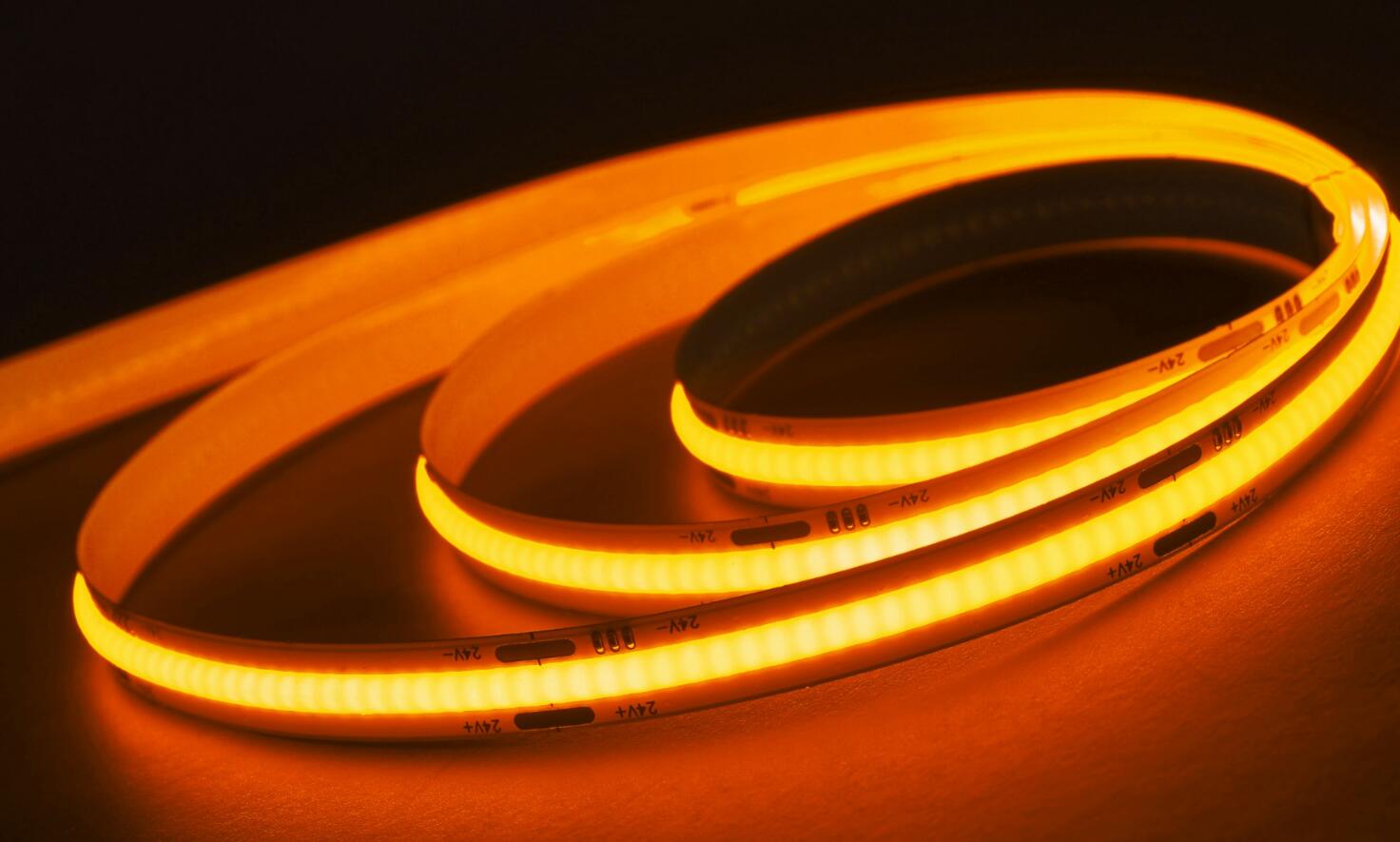

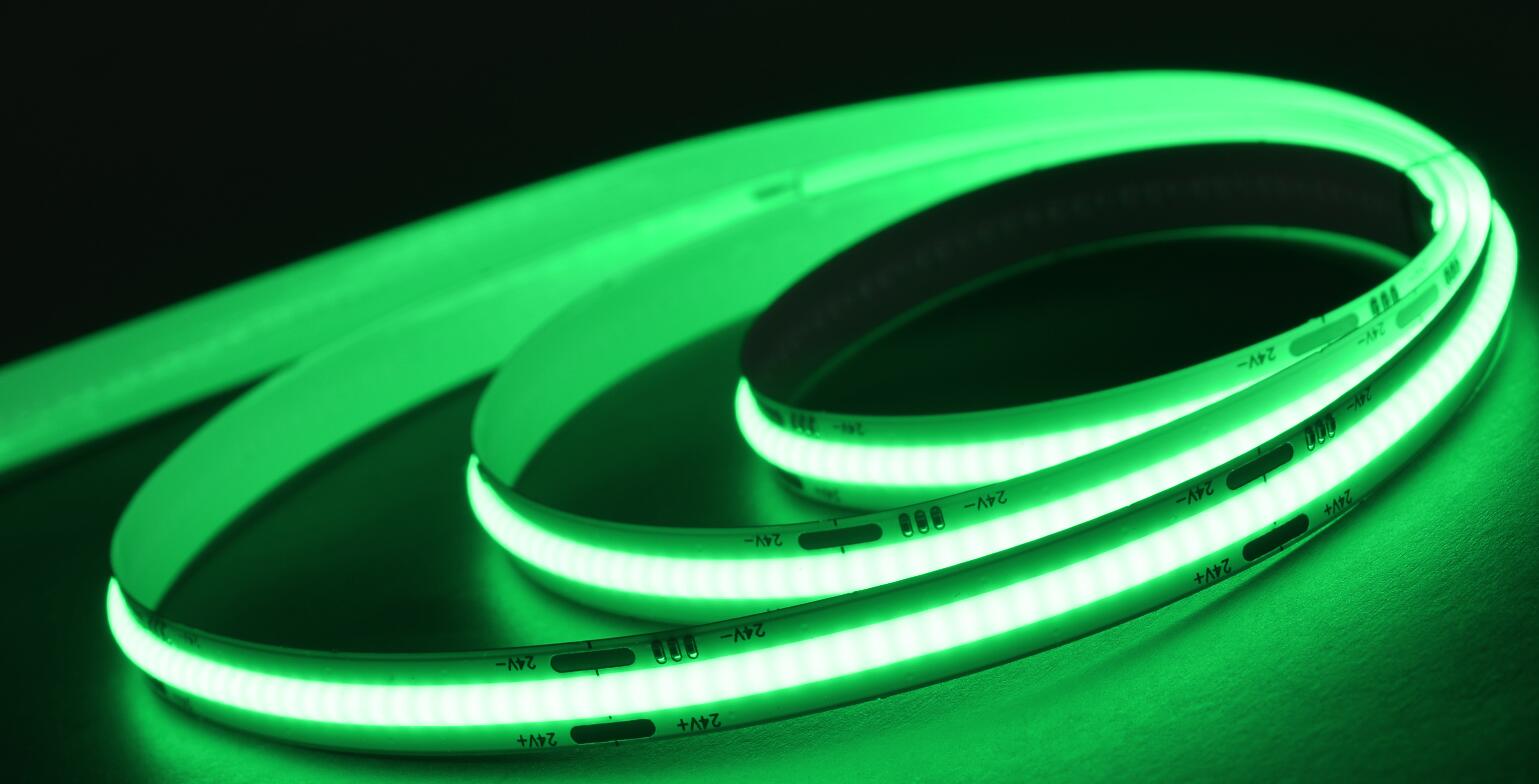

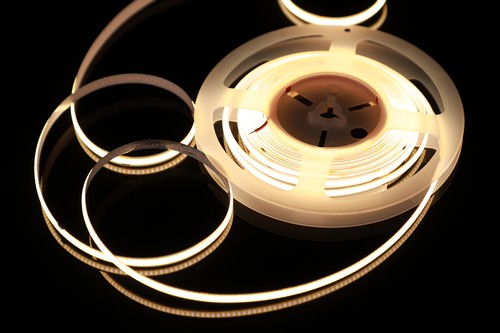

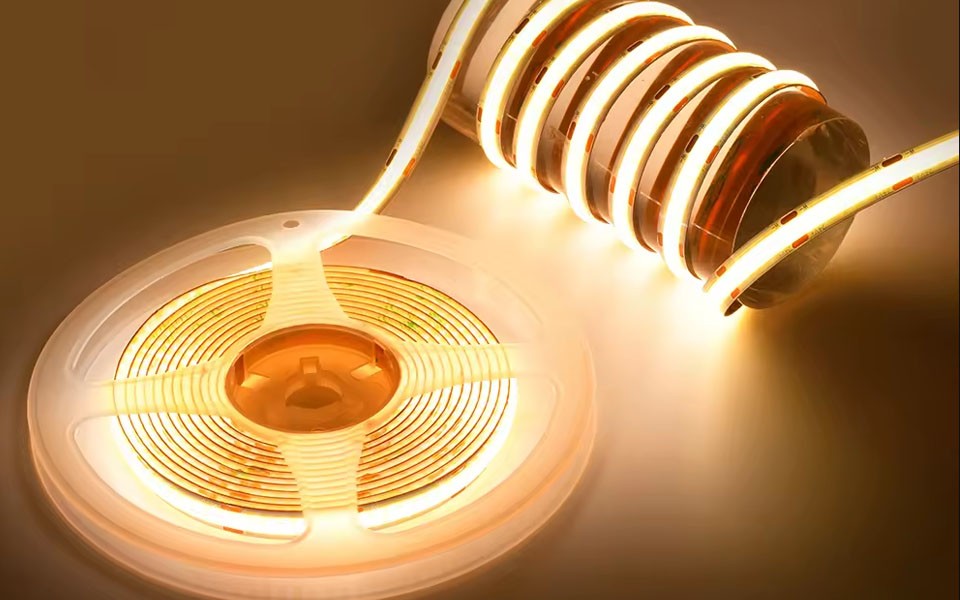

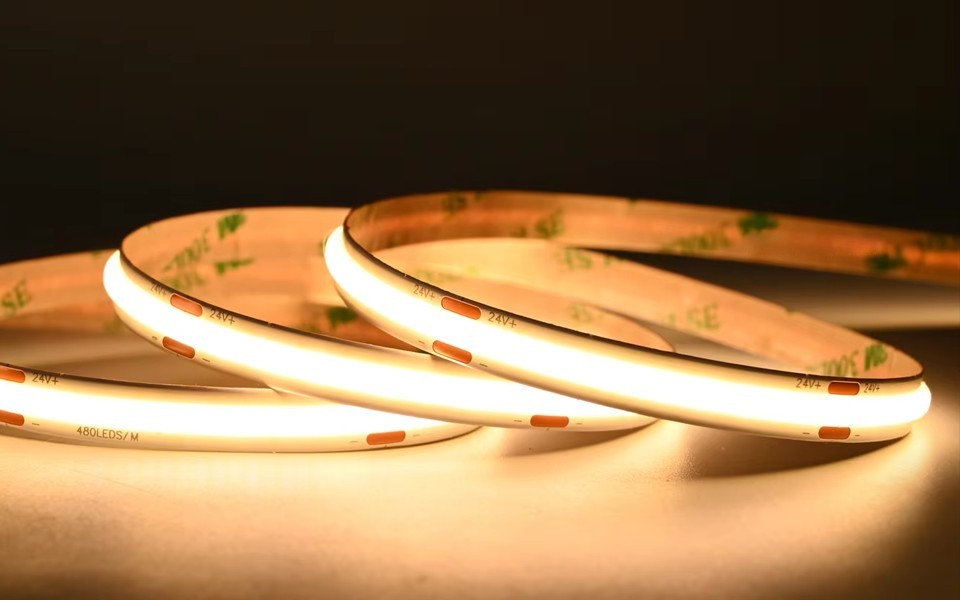

LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L
LED COB STRIP LIGHT 480L

LED COB STRIP LIGHT 480L

● Reel-to-reel PCB, no solder joints for whole reel, solder-free at every half meter, which avoid problems like false soldering, or inaccurate length.
● COB design, dot free even without any profiles.
● Excellent lighting with SDCM in 5-step, high efficiency that’s up to 100Lm/W @CRI90.
● Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.

LED COB STRIP LIGHT 480L

Select the number of specifications

Please check the product information you want!

Product Detail

8mm 480leds/M COB LED Strip Light

Parameter Table

Hot Sale Series CRI90 480led/M COB Strip Light

  • New technology, high density, dot-free, Ra>90.
  • 2 OZ FPC, original high quality 3M 9495LE tape, with special design strong package. LED with LM-80 Test approval.
  • Energy-saving and environment-friendly.
  • Customized service available, 3 Years Warranty.

Model No.LED TypeLED Qty
(pcs/m)		CCTWork VoltagePowerLumen
（Lm/m）		Ra
CM-COB480-65K-V12-R90COB4806500±300K12V DC10W/M1050Lm90+
CM-COB480-40K-V12-R90COB4804000±200K12V DC10W/M1020Lm90+
CM-COB480-30K-V12-R90COB4803000K±100K12V DC10W/M1000Lm90+
CM-COB480-RGB-V12-R90COB480Red/Green/Blue12V DC10W/M//
CM-COB480-65K-V24-R90COB4806500±300K24V DC10W/M1050Lm90+
CM-COB480-40K-V24-R90COB4804000±200K24V DC10W/M1020Lm90+
CM-COB480-30K-V24-R90COB4803000K±100K24V DC10W/M1000Lm90+
CM-COB480-RGB-V24-R90COB480Red/Green/Blue24V DC10W/M//

COB Flexible LED Lights Strip

  • New technology of led packaging
  • High density, dot free
  • Wide beam angle 180°
  • Good heat dissipation
  • Good flexibility

12V & 24V Design

Code

LED Type

Voltage

PCB width

Cutting interval

Size


25mm
50mm

1.6*8*5000mm
1.6*8*5000mm

Parameters

Power

Color

Lumen

Lm/W

CRI

10

3000K
4000K
6500K

850
950
1000

85
95
100

90+
90+
90+



No comment

Previous : LED COB STRIP LIGHT Next : LED COB STRIP LIGHT 320L
Product Detail

8mm 480leds/M COB LED Strip Light

Parameter Table

Hot Sale Series CRI90 480led/M COB Strip Light

  • New technology, high density, dot-free, Ra>90.
  • 2 OZ FPC, original high quality 3M 9495LE tape, with special design strong package. LED with LM-80 Test approval.
  • Energy-saving and environment-friendly.
  • Customized service available, 3 Years Warranty.

Model No.LED TypeLED Qty
(pcs/m)		CCTWork VoltagePowerLumen
（Lm/m）		Ra
CM-COB480-65K-V12-R90COB4806500±300K12V DC10W/M1050Lm90+
CM-COB480-40K-V12-R90COB4804000±200K12V DC10W/M1020Lm90+
CM-COB480-30K-V12-R90COB4803000K±100K12V DC10W/M1000Lm90+
CM-COB480-RGB-V12-R90COB480Red/Green/Blue12V DC10W/M//
CM-COB480-65K-V24-R90COB4806500±300K24V DC10W/M1050Lm90+
CM-COB480-40K-V24-R90COB4804000±200K24V DC10W/M1020Lm90+
CM-COB480-30K-V24-R90COB4803000K±100K24V DC10W/M1000Lm90+
CM-COB480-RGB-V24-R90COB480Red/Green/Blue24V DC10W/M//

COB Flexible LED Lights Strip

  • New technology of led packaging
  • High density, dot free
  • Wide beam angle 180°
  • Good heat dissipation
  • Good flexibility

12V & 24V Design

Code

LED Type

Voltage

PCB width

Cutting interval

Size


25mm
50mm

1.6*8*5000mm
1.6*8*5000mm

Parameters

Power

Color

Lumen

Lm/W

CRI

10

3000K
4000K
6500K

850
950
1000

85
95
100

90+
90+
90+



LED COB STRIP LIGHT 480L
● Reel-to-reel PCB, no solder joints for whole reel, solder-free at every half meter, which avoid problems like false soldering, or inaccurate length.
● COB design, dot free even without any profiles.
● Excellent lighting with SDCM in 5-step, high efficiency that’s up to 100Lm/W @CRI90.
● Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.
