Color Changeable Tunable CCT COB Strip Light
Color Changeable Tunable CCT COB Strip Light
Color Changeable Tunable CCT COB Strip Light

Color Changeable Tunable CCT COB Strip Light

top sale

Product: COB-608LED-10MM-CCT
608chips, 100lm/W, dot-free

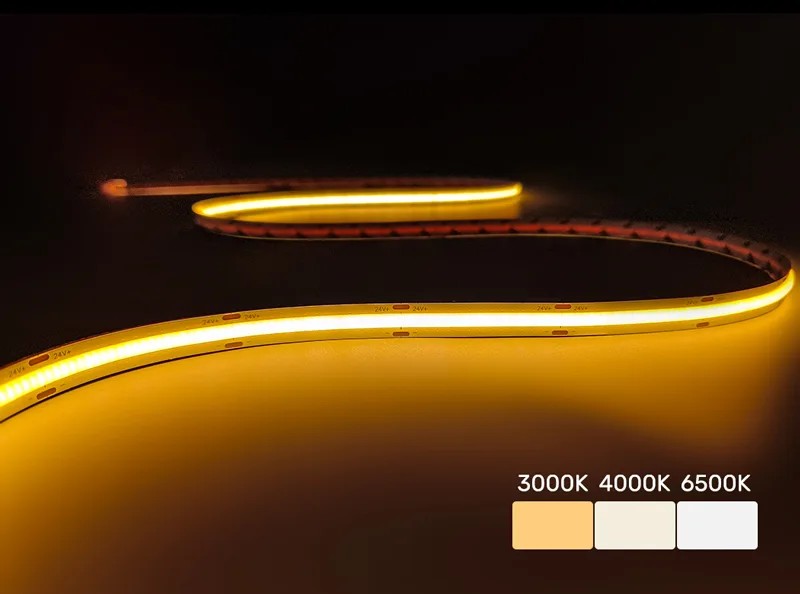

CCT tunable, 2700K to 6500K
180 degree beam angle
CRI90+, for decorative lighting

Color Changeable Tunable CCT COB Strip Light

Select the number of specifications

Please check the product information you want!

Product Detail

Product: COB-608LED-10MM-CCT

608chips, 100lm/W, dot-free

CCT tunable, 2700K to 6500K

180 degree beam angle

CRI90+, for decorative lighting


Specifications:

Model No.

CM-COBSL608

Efficiency

>100lm/W

Input Voltage

DC12V/24V

Beam Angle

180°

Power

7W/m+7W/m

Cut Section

26.31mm

LED QTY

608LEDs/m

Dimension

5000*10*2.3mm

CCT

CCT, 2700K - 6500K

IP Rating

IP20/IP65/IP67/IP68

SDCM

≤5

Warranty

3 Years

CRI

>90

Package Info

L22*W22*H26cm(500m/Box)

Dimensions:

CM-COBSL608-12V


FYT10T608A Dimension_02

CM-COBSL608-24V


FYT10T608C Dimension 02

Features:


COB strip light is a new type of strip, COB stands for Chip on Board, it’s a technology which package led chips directly on the flexible printed circuit board. It reduces the use of frame and gold thread compared to traditional flexible strip, come with No-hot-spot, wider beam angle, better heat dissipation, etc.

multi-color
waterproofing
quality assurance
hign brightness led
safety voltage
rubber
COB-480LED-8MM_Feature
COB-480LED-8MM_Feature-Flexibility

Flexibility

Due to the Chip On Board technology, it is so flexible even for tiny bend radius.

Dotless

Consistent and uniform lights with no hot spots, perfect
solution for a wide variety of applications where you don’t
want to see the dots.

COB-480LED-8MM_Feature-Dotless
COB-480LED-8MM_Feature-Excellent

Excellent

From the quality LED chips to the copper core wires, the internal and external artisanal craftsmanship creates comfortable lighting products with peace of mind and durability.

Wider Beam Angle

Uniform light color/high transmittance/no dark area/long
service life, COB strip light angle up to 180°, luminous efficacy
up to 100Im/W.

COB-480LED-8MM_Feature-Wider beam angle

Production Quality Control Process

We have developed a complete set of production quality control systems, from raw materials to SMT, and even the subsequent assembly, testing, packaging, and shipment of each link are the implementation of strict quality control processes to ensure that our colors LED strip can be perfectly delivered to customers.

SMT Process

SMT Process

Use high speed automated SMT machine to paste LED chips, IC chips, resistors to make sure all components are in the right place.

Automated Dispensing

Automated Dispensing

Use multi-nozzle automated dispensing equipment to evenly coat the formulated phosphor on the COB tape light.

100% QC Inspection

100% QC Inspection

After reflow soldering and high-temperature ovens, the COB strip needs to be tested again at 100% to ensure no defective LEDs.

Bending Test

Bending Test

The purpose of the bend test is to test whether the strip light can withstand a certain amount of bending without affecting its performance or life.

Twist Test

Twist Test

The LED strip twist test is mainly used to test the bending resistance and life span of LED strip lights by simulating the deformation of light strips in long-term use.

Aging Test

Aging Test

Aging for 8 hours, ensure each LED runs in good condition. And for the COB LED strip, there will be a slap test to check the stability.

Pasted With 3M Tape

Pasted With 3M Tape

All LED strips pasted with 3M adhesive tape and rolled reels to ensure easy transportation and installation.

Final Product Test

Final Product Test

Our quality inspectors conduct a final inspection of each roll of LED strip to ensure the consistency of the light color and the good appearance of the strip.

Packaging

Packaging

Finally, the labels are pasted on the reels and anti-static aluminum foil bags, and the COB strip lights are ready to be boxed and shipped.

IP65 Waterproof Drop Process

This type of waterproof COB strip light add a silicone layer on top of the LEDs basically fully sealing off the top end of the LED
strip, including all the solder joints and contact points. It can provide protection from water, humidity, and dust.

Before IP65

Before

arrow
Dropping IP65

Dropping gel

arrow
After IP65

After



No comment
