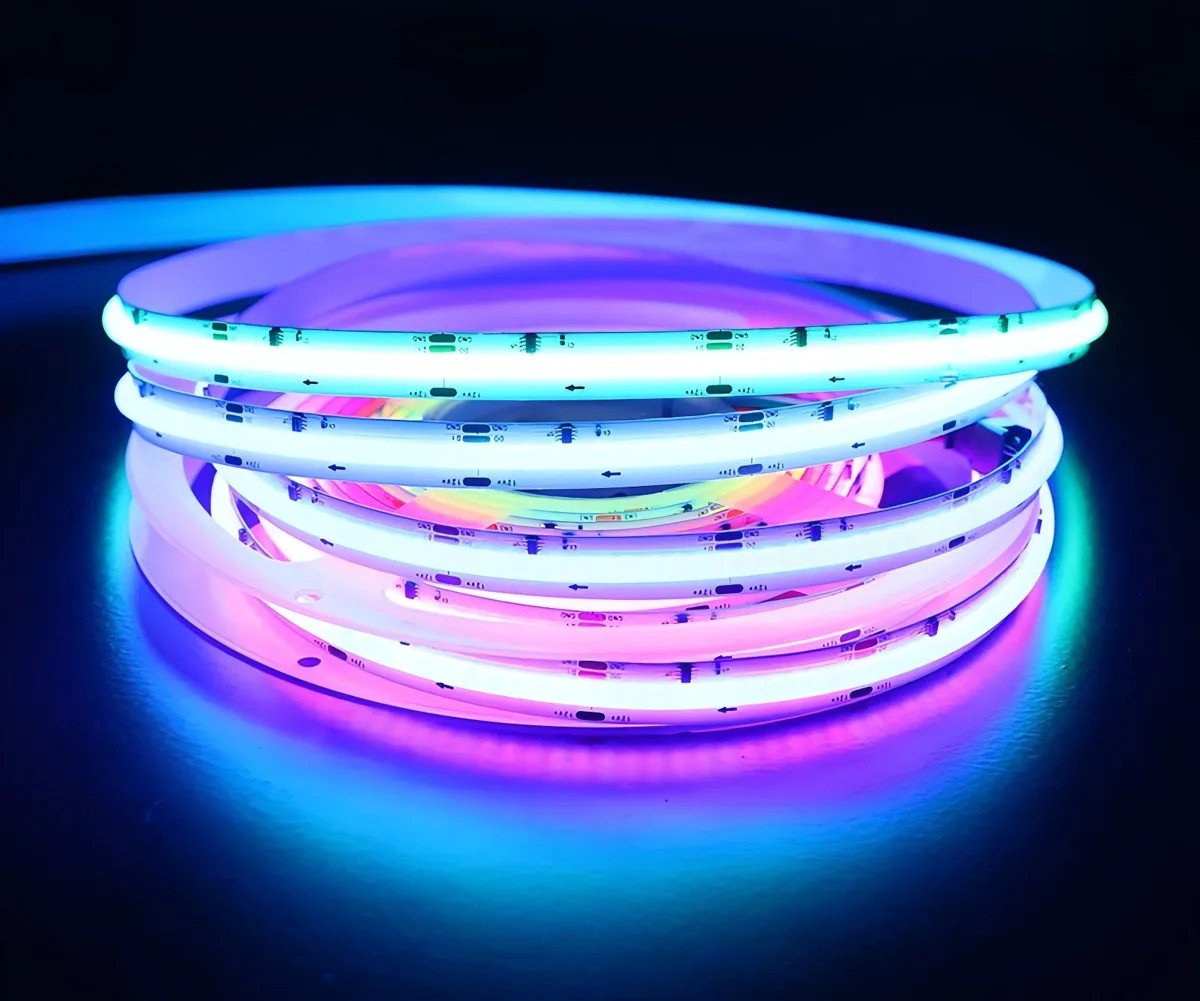

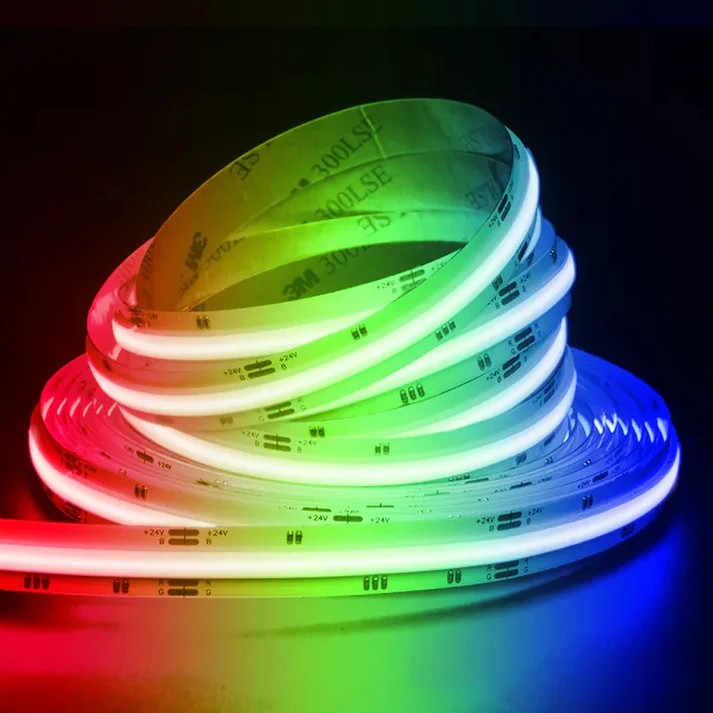

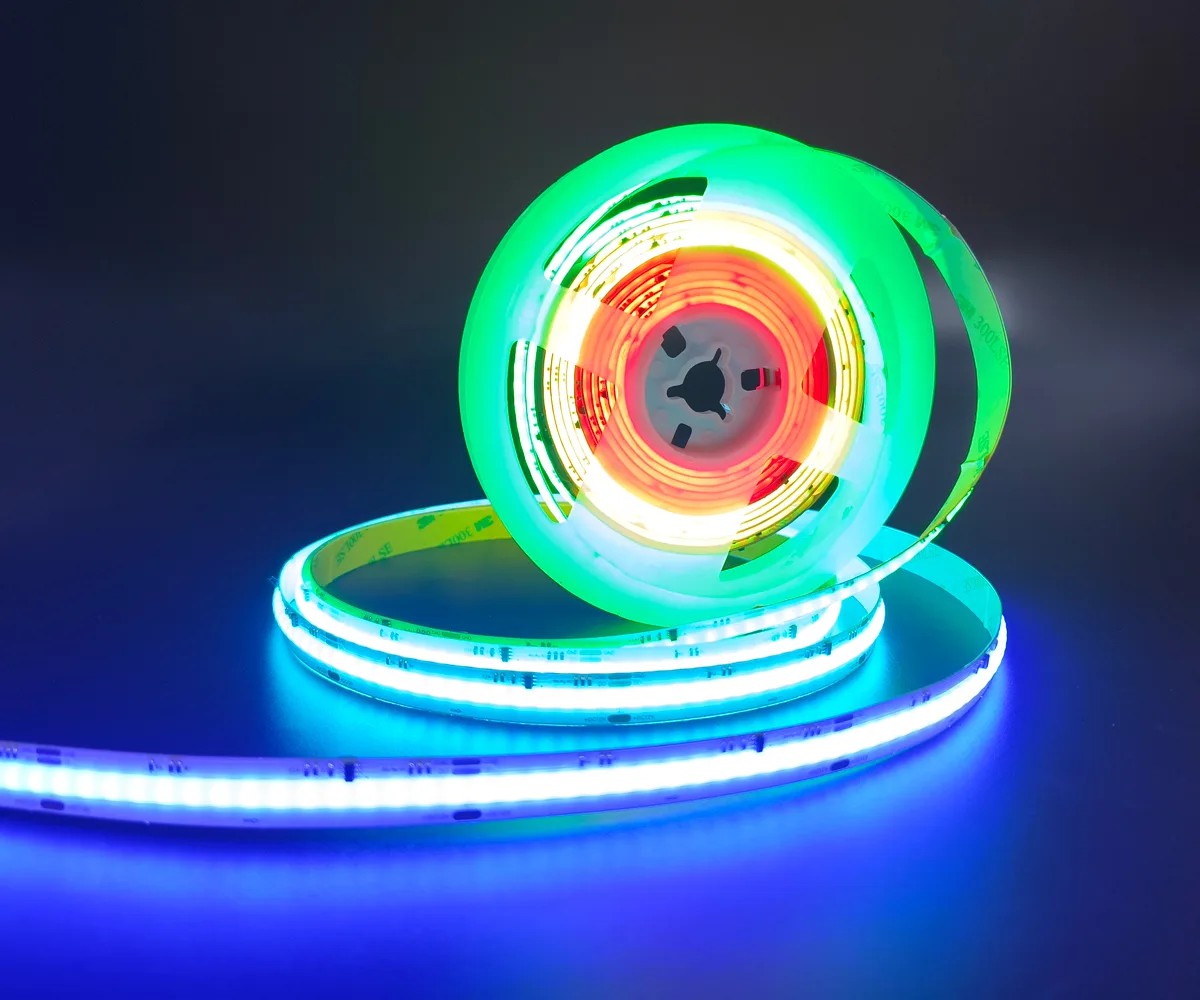

Addressable RGB COB LED Strip RGBIC
Addressable RGB COB LED Strip RGBIC
Addressable RGB COB LED Strip RGBIC
Addressable RGB COB LED Strip RGBIC

Addressable RGB COB LED Strip RGBIC

top sale

Addressable COB LED strip lights represent a major leap forward in LED strip technology, with the unique ability to independently control each LED unit or group of LEDs, creating unlimited possibilities for customization and creativity.

High-density chip linear arrangement, integrated package, uniform light color, no spots
High thermal conductivity, flexible circuit board design, bendable, easy to install
LED chip directly mounted on FPC, addressable LED strip’s light angle up to 180 degree

Addressable RGB COB LED Strip RGBIC

Select the number of specifications

Please check the product information you want!

Product Detail

Addressable RGB/RGBW COB LED Strip

Addressable COB LED strip lights represent a major leap forward in LED strip technology, with the unique ability to independently control each LED unit or group of LEDs, creating unlimited possibilities for customization and creativity.

  • High-density chip linear arrangement, integrated package, uniform light color, no spots
  • High thermal conductivity, flexible circuit board design, bendable, easy to install
  • LED chip directly mounted on FPC, addressable LED strip’s light angle up to 180 degrees
  • DC12V/24V constant voltage design, safe low voltage, small voltage drop, standard cascade length of 5 meters
  • Highly adhesive, thermally conductive double-sided adhesive backing for easy installation and long-lasting adhesion
  • LED sources are energy-saving and environmentally friendly and meet ROHS environmental standards
  • Can to be OEM/ODM and customizable

Addressable RGB RGBW COB LED Strip Specifications

Model No.
CM-COBSL10W576
CM-COBSL12W720
CM-COBSL10W784C
Input Voltage
DC12V/DC24V
DC12V/DC24V
DC24V
Power
8W/m, 16W/m
10W/m, 19W/m
21W/m
PCB Material
Double Sided FPC 18/35 Copper
Double Sided FPC 25/50 Copper
Double Sided FPC 18/35 Copper
Color
RGB+IC
RGB+IC
RGBW+IC(RGB+White 2700-6500K)
SPI IC Chip
External IC WS2811
External IC WS2811/WS2818
External IC WS2814
Breakpoint Resume
No
WS2811: No; WS2818: Yes
No
Pixels QTY
16 pixels/m
20 pixels/m
14 pixels/m
LED Chip QTY
576LEDs/m
720LEDs/m
784LEDs/m
Cut Section
62.5mm
50mm
71.42mm

RGB RGBW RGBCCT COB LED Strip Specifications

Model No.
CM-COBSL08W576
CM-COBSL12W784
CM-COBSL12W840
Input Voltage
DC12V/DC24V
DC24V
DC24V
Power
10W/m
19W/m
21W/m
PCB Material
Double Sided FPC 18/35 Copper
Double Sided FPC 18/35 Copper
Double Sided FPC 18/35 Copper
Color
RGB
RGBW(RGB+White 2700-6500K)
RGBCW(RGB+Tunable White 2700-6500K)
LED Chip QTY
576LEDs/m
784LEDs/m
840LEDs/m
Cut Section
31.25mm/62.5mm
71.42mm
35.71mm

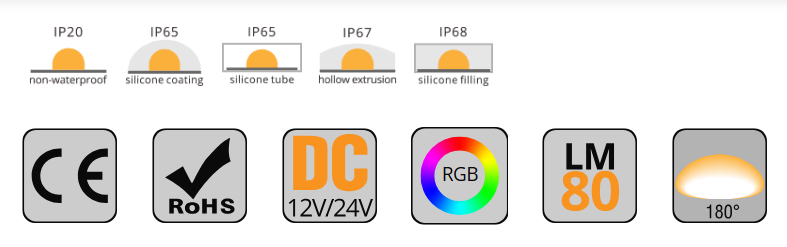

IP Rating
IP20/IP65/IP67/IP68
IP20/IP65/IP67/IP68
IP20/IP65/IP67/IP68
Warranty
3 Years
3 Years
3 Years
Dimension
5000*8*2.3mm
5000*12*3.4mm
5000*12*3.4mm

Features:

RGBW and RGBWW:

RGBW(Red, Green, Blue, White) and RGBWW(Red, Green, Blue, Warm White) LED strip lights are advanced versions of RGB striplights that incorporate an additional white LED component. These LED strips combine the color-changing capabilities of RGB withthe ability to produce white light.

RGB CCT COB LED Strip_COB-840LED-12MM-RGBCCT_RGBW and RGBWW

180° Wide-angle Irradiation:

180° wide-angle irradiation, more uniform and softer light.

RGB CCT COB LED Strip_COB-840LED-12MM-RGBCCT_180° wide angle

No Dark Spots Uniform Linear Lighting:

Dotless/no spot/uniform linear lighting.

RGB CCT COB LED Strip_COB-840LED-12MM-RGBCCT_No dark spots

COB VS SMD:

COB VS SMD

RGBIC COB Strip Light Details:

SPI COB RGB Strip vs SPI RGBW COB Strip
RGBIC COB Strip Details
Addressable COB Strip Light Installation and connection notes

Production Quality Control Process

We have developed a complete set of production quality control systems, from raw materials to SMT, and even the subsequent assembly, testing, packaging, and shipment of each link are the implementation of strict quality control processes to ensure that our colors LED strip can be perfectly delivered to customers.

SMT Process

SMT Process

Use high speed automated SMT machine to paste LED chips, IC chips, resistors to make sure all components are in the right place.

Automated Dispensing

Automated Dispensing

Use multi-nozzle automated dispensing equipment to evenly coat the formulated phosphor on the COB tape light.

100% QC Inspection

100% QC Inspection

After reflow soldering and high-temperature ovens, the COB strip needs to be tested again at 100% to ensure no defective LEDs.

Bending Test

Bending Test

The purpose of the bend test is to test whether the strip light can withstand a certain amount of bending without affecting its performance or life.

Twist Test

Twist Test

The LED strip twist test is mainly used to test the bending resistance and life span of LED strip lights by simulating the deformation of light strips in long-term use.

Aging Test

Aging Test

Aging for 8 hours, ensure each LED runs in good condition. And for the COB LED strip, there will be a slap test to check the stability.

Pasted With 3M Tape

Pasted With 3M Tape

All LED strips pasted with 3M adhesive tape and rolled reels to ensure easy transportation and installation.

Final Product Test

Final Product Test

Our quality inspectors conduct a final inspection of each roll of LED strip to ensure the consistency of the light color and the good appearance of the strip.

Packaging

Packaging

Finally, the labels are pasted on the reels and anti-static aluminum foil bags, and the COB strip lights are ready to be boxed and shipped.

IP65 Waterproof Drop Process

This type of waterproof COB strip light add a silicone layer on top of the LEDs basically fully sealing off the top end of the LED
strip, including all the solder joints and contact points. It can provide protection from water, humidity, and dust.

Before IP65

Before

arrow
Dropping IP65

Dropping gel

arrow
After IP65

After




No comment

Previous : COB-784LED-12MM-RGBW
Product Detail

Addressable RGB/RGBW COB LED Strip

Addressable COB LED strip lights represent a major leap forward in LED strip technology, with the unique ability to independently control each LED unit or group of LEDs, creating unlimited possibilities for customization and creativity.

  • High-density chip linear arrangement, integrated package, uniform light color, no spots
  • High thermal conductivity, flexible circuit board design, bendable, easy to install
  • LED chip directly mounted on FPC, addressable LED strip’s light angle up to 180 degrees
  • DC12V/24V constant voltage design, safe low voltage, small voltage drop, standard cascade length of 5 meters
  • Highly adhesive, thermally conductive double-sided adhesive backing for easy installation and long-lasting adhesion
  • LED sources are energy-saving and environmentally friendly and meet ROHS environmental standards
  • Can to be OEM/ODM and customizable

Addressable RGB RGBW COB LED Strip Specifications

Model No.
CM-COBSL10W576
CM-COBSL12W720
CM-COBSL10W784C
Input Voltage
DC12V/DC24V
DC12V/DC24V
DC24V
Power
8W/m, 16W/m
10W/m, 19W/m
21W/m
PCB Material
Double Sided FPC 18/35 Copper
Double Sided FPC 25/50 Copper
Double Sided FPC 18/35 Copper
Color
RGB+IC
RGB+IC
RGBW+IC(RGB+White 2700-6500K)
SPI IC Chip
External IC WS2811
External IC WS2811/WS2818
External IC WS2814
Breakpoint Resume
No
WS2811: No; WS2818: Yes
No
Pixels QTY
16 pixels/m
20 pixels/m
14 pixels/m
LED Chip QTY
576LEDs/m
720LEDs/m
784LEDs/m
Cut Section
62.5mm
50mm
71.42mm

RGB RGBW RGBCCT COB LED Strip Specifications

Model No.
CM-COBSL08W576
CM-COBSL12W784
CM-COBSL12W840
Input Voltage
DC12V/DC24V
DC24V
DC24V
Power
10W/m
19W/m
21W/m
PCB Material
Double Sided FPC 18/35 Copper
Double Sided FPC 18/35 Copper
Double Sided FPC 18/35 Copper
Color
RGB
RGBW(RGB+White 2700-6500K)
RGBCW(RGB+Tunable White 2700-6500K)
LED Chip QTY
576LEDs/m
784LEDs/m
840LEDs/m
Cut Section
31.25mm/62.5mm
71.42mm
35.71mm
IP Rating
IP20/IP65/IP67/IP68
IP20/IP65/IP67/IP68
IP20/IP65/IP67/IP68
Warranty
3 Years
3 Years
3 Years
Dimension
5000*8*2.3mm
5000*12*3.4mm
5000*12*3.4mm

Features:

RGBW and RGBWW:

RGBW(Red, Green, Blue, White) and RGBWW(Red, Green, Blue, Warm White) LED strip lights are advanced versions of RGB striplights that incorporate an additional white LED component. These LED strips combine the color-changing capabilities of RGB withthe ability to produce white light.

RGB CCT COB LED Strip_COB-840LED-12MM-RGBCCT_RGBW and RGBWW

180° Wide-angle Irradiation:

180° wide-angle irradiation, more uniform and softer light.

RGB CCT COB LED Strip_COB-840LED-12MM-RGBCCT_180° wide angle

No Dark Spots Uniform Linear Lighting:

Dotless/no spot/uniform linear lighting.

RGB CCT COB LED Strip_COB-840LED-12MM-RGBCCT_No dark spots

COB VS SMD:

COB VS SMD

RGBIC COB Strip Light Details:

SPI COB RGB Strip vs SPI RGBW COB Strip
RGBIC COB Strip Details
Addressable COB Strip Light Installation and connection notes

Production Quality Control Process

We have developed a complete set of production quality control systems, from raw materials to SMT, and even the subsequent assembly, testing, packaging, and shipment of each link are the implementation of strict quality control processes to ensure that our colors LED strip can be perfectly delivered to customers.

SMT Process

SMT Process

Use high speed automated SMT machine to paste LED chips, IC chips, resistors to make sure all components are in the right place.

Automated Dispensing

Automated Dispensing

Use multi-nozzle automated dispensing equipment to evenly coat the formulated phosphor on the COB tape light.

100% QC Inspection

100% QC Inspection

After reflow soldering and high-temperature ovens, the COB strip needs to be tested again at 100% to ensure no defective LEDs.

Bending Test

Bending Test

The purpose of the bend test is to test whether the strip light can withstand a certain amount of bending without affecting its performance or life.

Twist Test

Twist Test

The LED strip twist test is mainly used to test the bending resistance and life span of LED strip lights by simulating the deformation of light strips in long-term use.

Aging Test

Aging Test

Aging for 8 hours, ensure each LED runs in good condition. And for the COB LED strip, there will be a slap test to check the stability.

Pasted With 3M Tape

Pasted With 3M Tape

All LED strips pasted with 3M adhesive tape and rolled reels to ensure easy transportation and installation.

Final Product Test

Final Product Test

Our quality inspectors conduct a final inspection of each roll of LED strip to ensure the consistency of the light color and the good appearance of the strip.

Packaging

Packaging

Finally, the labels are pasted on the reels and anti-static aluminum foil bags, and the COB strip lights are ready to be boxed and shipped.

IP65 Waterproof Drop Process

This type of waterproof COB strip light add a silicone layer on top of the LEDs basically fully sealing off the top end of the LED
strip, including all the solder joints and contact points. It can provide protection from water, humidity, and dust.

Before IP65

Before

arrow
Dropping IP65

Dropping gel

arrow
After IP65

After
