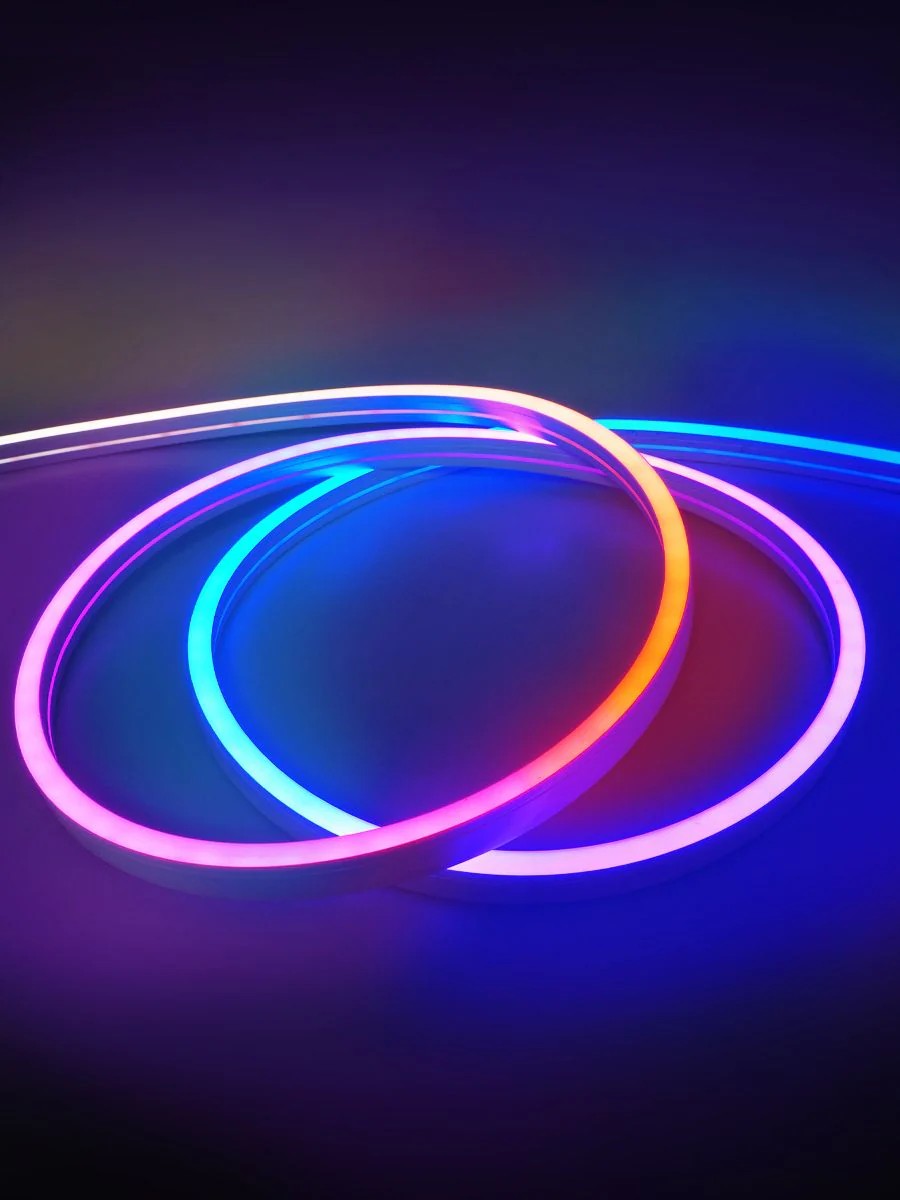

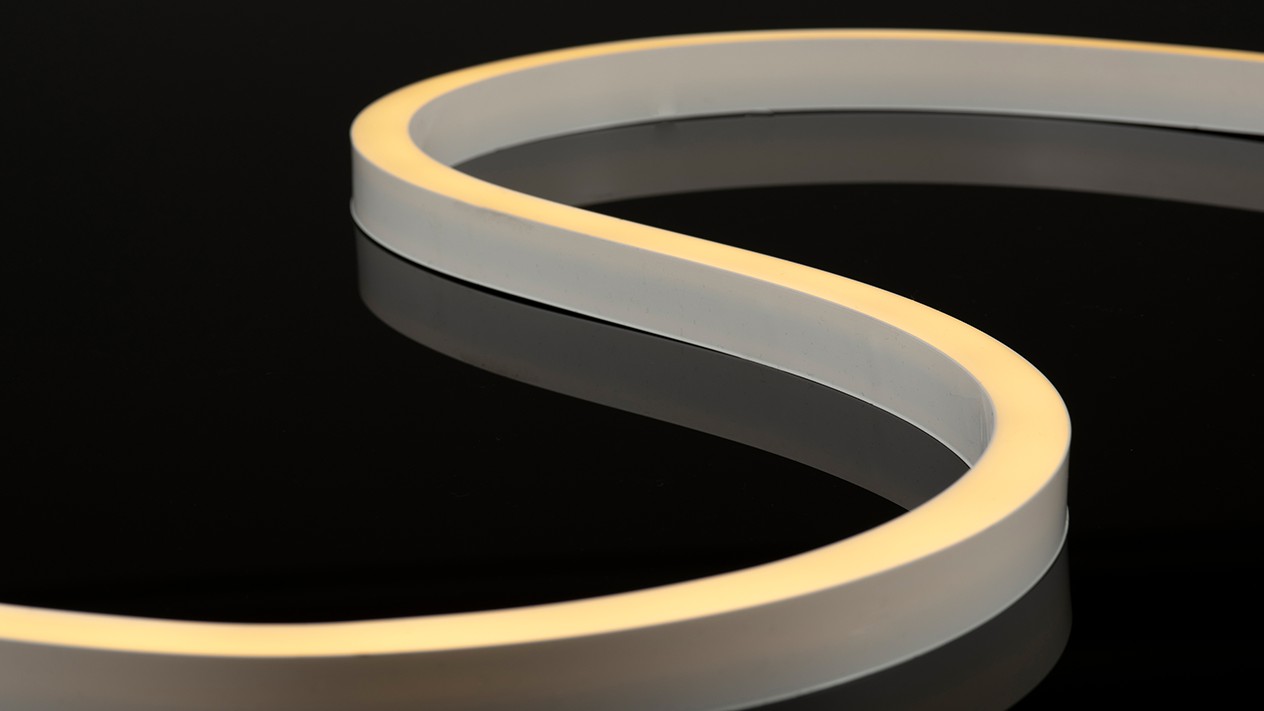

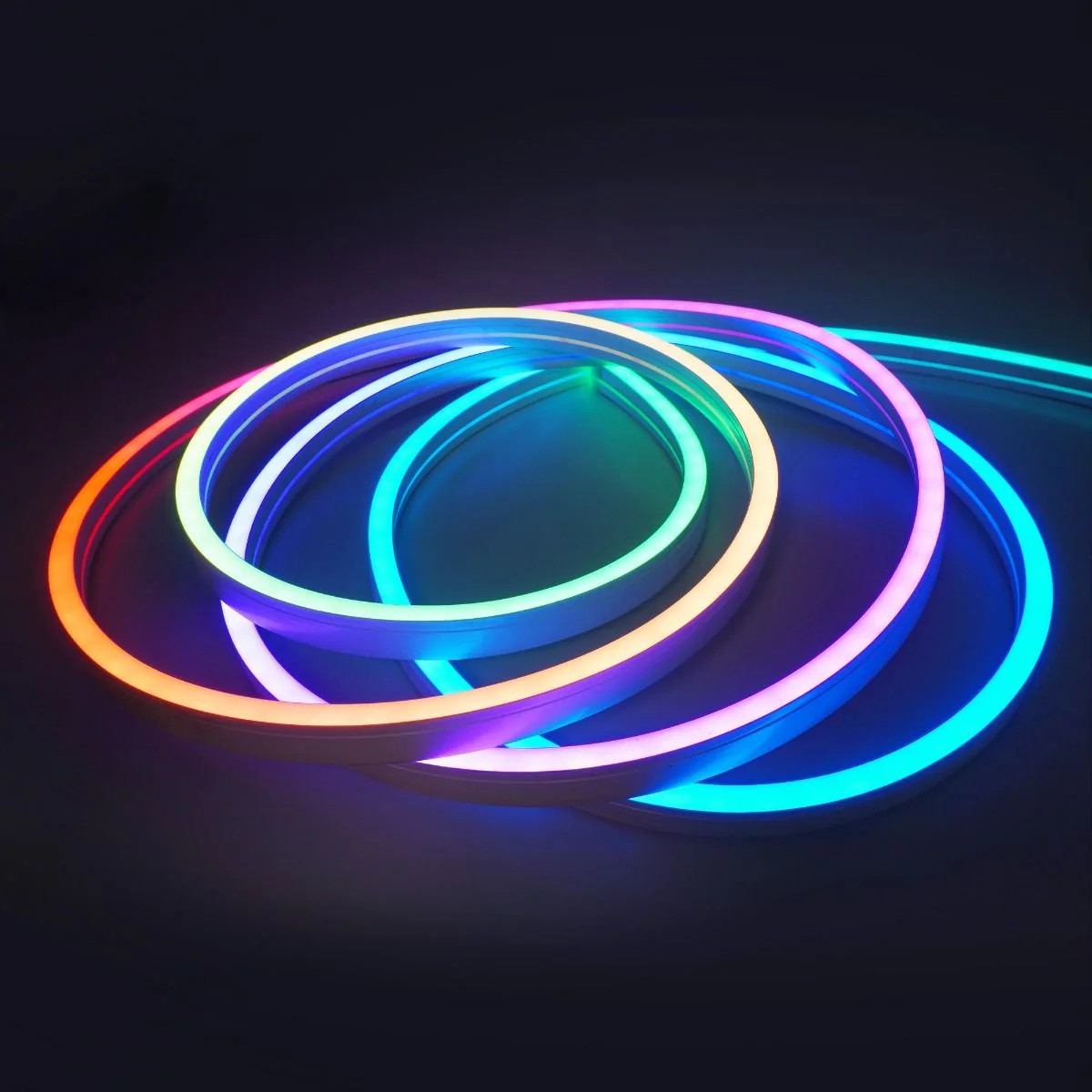

Silicone LED Neon Flex sideview 8x16mm
Silicone LED Neon Flex sideview 8x16mm
Silicone LED Neon Flex sideview 8x16mm

Silicone LED Neon Flex sideview 8x16mm

Cross section size： 8x16mm(WXH)
Power/m：10W
Input Voltage： DC12/24V
CRI： 90
Bending direction： Horizontal bending
IP grade： IP67

Silicone LED Neon Flex sideview 8x16mm

Select the number of specifications

Please check the product information you want!

Product Detail

Silicone LED Neon Flex sideview 8x16mm

*IP67 FLEX LEDNEON 0816,  Cross section size 8mm x 16mm(W x H)  ,which is horizontal bending with

min.bending diameter of 50mm

*Colors option: 2400k,2700K,3000K,3500K,4000k,5000K,6000K,Red,Green,Blue,Yellow,Pink

 and Orange,CCT,Dim to Warm, RGB and RGBW

*It is IP67 protected, silicone material,UV resistant, solvents resistant and saltwater resistant.

Dot free will bring the most excellent performance for indoor & outdoor applications.


Technical Data

Mono color (LM/M) DC24V

ModelCCT/ColorInput voltagePower/mCRILumen(LM/M)Max.length (single feed)Unit Cut
CMMN-0816-2100K2000-2200KDC24V10W90+246lm13m50mm
CMMN-0816-2400K2300-2500KDC24V10W90+312m13m50mm
CMMN-0816-2700K2600-2800KDC24V10W90+353lm13m50mm
CMMN-0816-3000K2900-3100KDC24V10W90+299lm13m50mm
CMMN-0816-3500K3400-3700KDC24V10W90+327lm13m50mm
CMMN-0816-4000K3800-4300KDC24V10W90+360lm13m50mm
CMMN-0816-5000K4800-5300KDC24V10W90+360m13m50mm
CMMN-0816-6000K5900-6400KDC24V10W90+359m13m50mm
CMMN-0816-R620-625nmDC24V10W/160m17m50mm
CMMN-0816-G515-525nmDC24V10W/398m13m50mm
CMMN-0816-B460-465nmDC24V10W/52m13m50mm
CMMN-0816-Y585-595nmDC24V10W/125m17m50mm
CMMN-0816-Pink/DC24V10W/145m13m50mm
CMMN-0816-O605-615nmDC24V10W/172m17m50mm

Note: -The max. length is based on Constant Current DC24V CC LED Strip,if constant voltage DC24V CV LED Strip. Max.length is 5meters power from single feed



CCT Tunable(LM/M) DC24V

ModelPower/mCRI(Ra)2700K6000K2700+6000KMax.length (single feed)Unit Cut
CMSN-0816-CCT10w90+126lm177lm269lm5m50mm


RGB(LM/M) DC24V

ModelPower/mRGBRGBMax.length (single feed)Unit Cut
CMSN-0816-RGB10w33lm80lm15lm126lm5m50mm


RGBW(LM/M) DC24V

ModelPower/mRGB+2700KRGB+3000KRGB+4000KRGB+6000KMax.length (single feed)Unit Cut
CMSN-0816-RGBW10w415lm415lm425lm410lm5m50mm


Cable entry

cable entry.jpg

Mounting Accessory

Mounting accessory.jpg
