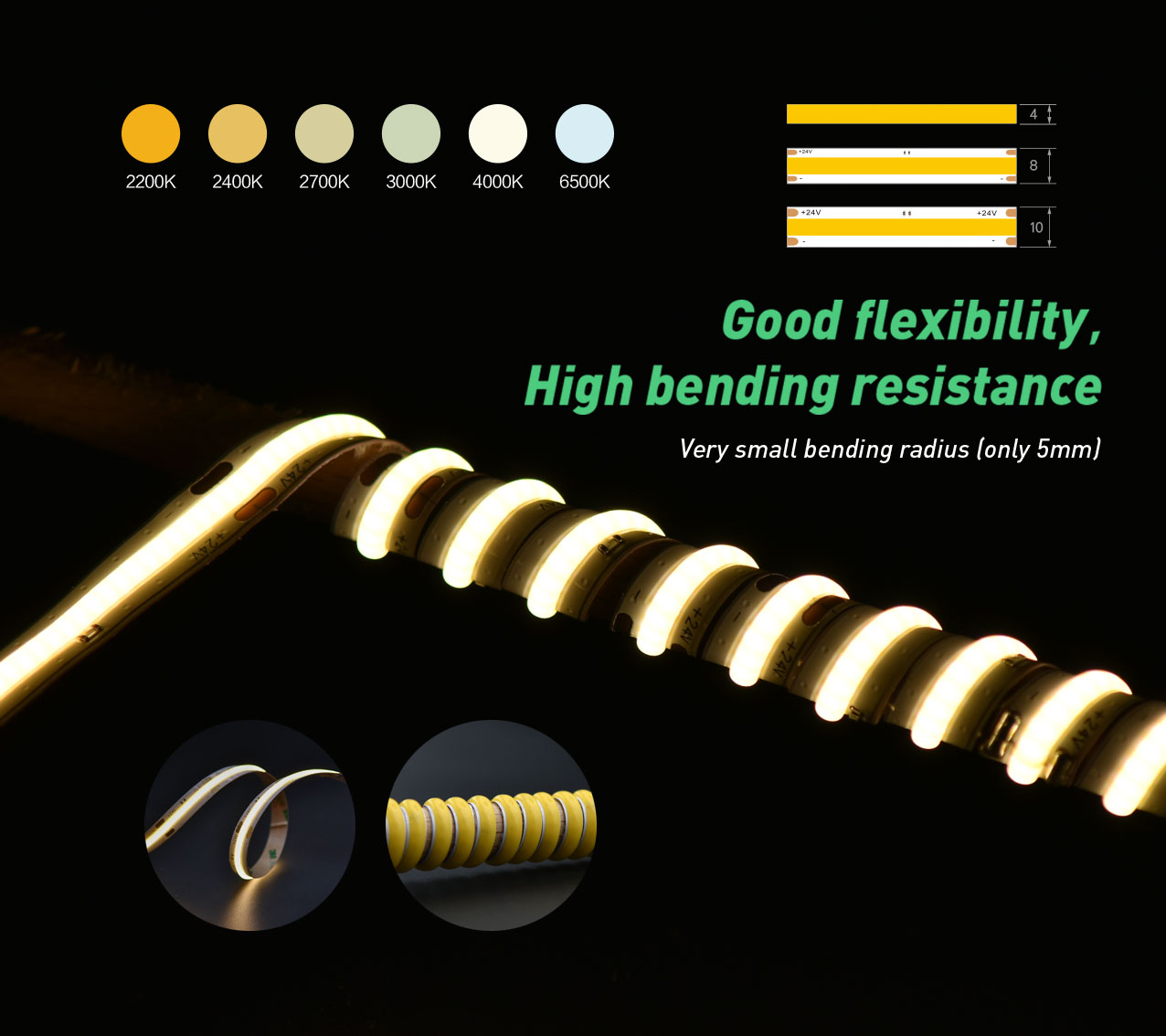

Single color COB LED strip
Single color COB LED strip
Single color COB LED strip
Single color COB LED strip

Single color COB LED strip

Mini cutting length,can be cut freely,more flexible for projects installationLinear LED strip and dot-free with large light-emitting angle
The largest emitting angle can reach to 180°
Spot free, no shadow, soft and uniform lighting.
Color options: 2700K,3000K ,4000K and 6500K. Other colors can be customized produced

Single color COB LED strip

Select the number of specifications

Please check the product information you want!

Product Detail

Single color COB LED strip

  • Input voltage:： DC12V/24V
  • SMD Type:： COB
  • LED Quantity:： 480pcs
  • Beam Angle：： 180°
  • Working temperture:： -25℃~+45℃
  • PCB Width(mm) :： 8mm and 10mm by optional
  • Cutting unit:： 25mm @ DC12V;50mm@DC24V
  • Colors:： 2700K/3000K/4000K/6000K/R/G/B/Y/O


Technical Data

Input   voltage:DC12V/24VWorking hour:35000h
CRI(Ra):COBWorking temperture:-25℃~+45℃
LED Quantity 480leds/meterCutting unit:Free cutting
Beam Angle： 180°PCB Width(mm) :8/10mm


Dimension

CM-COBSL08W480L-12V

FYX08T480A Dimensions

CM-COBSL08W480L-24V

FYX08T480C Dimensions



Product parameter

Model: CM-COBSL08W480L

CCTCRI(Ra）SDCMpower/mLumen/mMax.length (single feed)Unit cut(mm)PCB width
2700K±10090+<55W315lm5mFree cutting(2.08mm)8MM
10W630lm
15W945lm
3000K±15090+<55W360lm5mFree cutting(2.08mm)8MM
10W720lm
15W1080lm
4000K±25090+<55W365lm5mFree cutting(2.08mm)8MM
10W730lm
15W1095lm
6500K±30090+<55W390lm5mFree cutting8MM
10W780lm
15W1170lm


Model: CM-COBSL10W480L

CCTCRI(Ra）SDCMpower/mLumen/mMax.length (single feed)Unit cut(mm)PCB width
2700K±10090+<55W305lm5mFree cutting(2.08mm)10MM
10W610lm
15W915lm
3000K±15090+<55W325lm5mFree cutting(2.08mm)10MM
10W650lm
15W975lm
4000K±25090+<55W340lm5mFree cutting(2.08mm)10MM
10W680lm
15W1020lm
6500K±30090+<55W330lm5mFree cutting(2.08mm)10MM
10W660lm
15W990lm

Production Quality Control Process

We have developed a complete set of production quality control systems, from raw materials to SMT, and even the subsequent assembly, testing, packaging, and shipment of each link are the implementation of strict quality control processes to ensure that our colors LED strip can be perfectly delivered to customers.

SMT Process

SMT Process

Use high speed automated SMT machine to paste LED chips, IC chips, resistors to make sure all components are in the right place.

Automated Dispensing

Automated Dispensing

Use multi-nozzle automated dispensing equipment to evenly coat the formulated phosphor on the COB tape light.

100% QC Inspection

100% QC Inspection

After reflow soldering and high-temperature ovens, the COB strip needs to be tested again at 100% to ensure no defective LEDs.

Bending Test

Bending Test

The purpose of the bend test is to test whether the strip light can withstand a certain amount of bending without affecting its performance or life.

Twist Test

Twist Test

The LED strip twist test is mainly used to test the bending resistance and life span of LED strip lights by simulating the deformation of light strips in long-term use.

Aging Test

Aging Test

Aging for 8 hours, ensure each LED runs in good condition. And for the COB LED strip, there will be a slap test to check the stability.

Pasted With 3M Tape

Pasted With 3M Tape

All LED strips pasted with 3M adhesive tape and rolled reels to ensure easy transportation and installation.

Final Product Test

Final Product Test

Our quality inspectors conduct a final inspection of each roll of LED strip to ensure the consistency of the light color and the good appearance of the strip.

Packaging

Packaging

Finally, the labels are pasted on the reels and anti-static aluminum foil bags, and the COB strip lights are ready to be boxed and shipped.

IP65 Waterproof Drop Process

This type of waterproof COB strip light add a silicone layer on top of the LEDs basically fully sealing off the top end of the LED
strip, including all the solder joints and contact points. It can provide protection from water, humidity, and dust.

Before IP65

Before

arrow
Dropping IP65

Dropping gel

arrow
After IP65

After



No comment
